RH Equipment designs and manufactures a wide range of products including insulated or non-insulated hydraulic aerial ladders, aerial ladders and hydraulic gangways.

Many of RH units are batteries operated and will work without the vehicle engine on.

Visit their website to see more pictures or videos of the products presented below.

***

Insulated units

The RH38D is a non-insulated telescoping ladder with a working height of 38 ft. (11.58 m). Featuring three sections for optimal effectiveness, this unit is ideally suited for small vehicles and jobs in confined spaces (e.g., backstreets).  A lifting ring located at the end of the second section is a standard accessory enabling you to lift loads of 550 lbs (250 kg) in any position, regardless of carrier vehicles. That’s not to mention the many other benefits and options available to ensure that RH aerial ladder equipment meets your specific needs.

This unit can be mounted on different chassis like Ford Transit, Mercedes Sprinter, Nissan NV 3500, Dodge trucks and vans and many more. Call them to see what they can do for your preferred chassis and configuration.

The use of STRENX steel comes in handy; you get the ruggedness and quality RH Aerial Lift Equipment is known for and greater pay load normally associated with bigger rigs.  Feel free to contact them for more information.

***

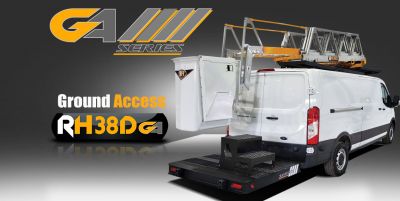

The RH38D GA is an insulated telescopic ladder with a working height of 38 feet (11.58 m). Featuring a "Goose Neck" and three sections ladder for extra efficiency, the RH38DGA is ideal for businesses that require ground access. A side door to the bucket allows you to climb into the basket from the bumper or the ground. This model is an unmatched product on the market.

The lifting ring located at the end of the second section is a standard accessory that can lift loads of 500 pounds (250 kg) (opt.) in any position, regardless of the carrying vehicle. True to RH standards, we offer a range of products with maximized capabilities such as cargo space, payload and basket capacity. This will vary depending on the model of the vehicle. The 3-section design makes your unit more stable and stiffer when extended, for unparalleled ease of use. You want to work with even more precision? Ask about their 2-speed option.

This fully electric unit can be mounted on different chassis and is designed with a swivel platform at the base of the ladder to facilitate evacuation in any position.

The GA "Ground Access" Series is available on all the dielectric models.

***

The RH44D is an insulated telescoping ladder with a working height of 44 ft. (13.41 m), comprising three ladder sections for optimal efficiency. Ideal for work requiring a longer reach (e.g., utility poles offset far from the road). It can be installed on more lightweight trucks to give them working heights, horizontal reaches of (10.05 m) and greater pay load normally associated with bigger rigs.

The lift ring located at the end of the second section is a standard accessory and can lift loads of 550 lbs (250 kg) in any position, regardless of carrier vehicle. And that’s not to mention the many other benefits and options available to ensure that RH aerial ladder equipment meets your peculiar needs.

Key in hand option is available.

***

The RH50D is an insulated telescoping ladder with a working height of 50 ft. (15.24 m), comprising three ladder sections for optimal effectiveness. Ideal for work requiring a longer reach (e.g., utility poles offset far from the road) since the side reach can take you all the way to 39 ft. (12 m). The lift ring located at the end of the second section is a standard accessory and can lift loads of 550 lbs (250 kg) in any position, regardless of the chosen vehicle.

This unit can be installed on different chassis as long as the GVWR (gross vehicle weight rating) is greater than 19, 000 lbs (8,620 kg) like Hino, Mitsubishi, International, Freightliner and so many more. And that’s not to mention the many other benefits and options available to ensure that RH aerial ladder equipment meets your precise needs.

Key in hand option is available. Please contact them to see what they can do for your preferred chassis and configuration.

***

Non-insulated units

The RH35 is a non-insulated telescoping ladder with a working height of 35 ft. (10.67 m) and a great side reach of 24 ft. (10.67 m). This unit has the advantage of being a 3-section ladder including a lifting ring, as do most of our products.  It is ideally suited for smaller vehicles and jobs in confined spaces (e.g., alleyways).

With the RH35, you get the rugged reliability and quality RH aerial ladders are known for. That’s without mentioning the many other advantages and options available to ensure that RH aerial ladder equipment meet your specific needs in your field of work.

This unit can be mounted on many smaller chassis like Ford Transit, Mercedes Sprinter, Nissan NV 3500 or vehicles with a GVWR (gross vehicle weight rating) greater than 9,500 lbs (4,309 kg).

***

The RHL37 is a non-insulated telescoping ladder with a working height of 37 ft. (11.27 m). The “L” in RHL37 refers to the light weight design of the ladder, which has just two sections for minimized weight and manufacturing costs. This unit provides an amazing side reach of 26.8 ft. (8.51 m). This model has no lifting ring.

As RH’s lightest model, the RHL37 reflects the firm’s commitment to R&D and its use of advanced technologies to reduce equipment weight without compromising safety. The use of STRENX steel comes in handy; you get the ruggedness and quality RH Aerial Lift Equipment is known for, great payload at a very attractive price.

This unit can be mounted on many smaller chassis like the GMC Savana, Ford Transit, Mercedes Sprinter or vehicles with a GVWR (gross vehicle weight rating) greater than 9,500 lbs (4,309 kg). Contact them for more details.

***

The RH38 is a non-insulated telescoping ladder with a working height of 38 ft. (11.58 m). Featuring three sections for optimal effectiveness, this unit is ideally suited for small vehicles and jobs in confined spaces (e.g., backstreets).

With the RH38, you get the rugged reliability and quality RH aerial ladders are known for. That’s not to mention the many other benefits and add on available to ensure that RH aerial ladder equipment meets your specific needs including greater pay load usually associated with smaller rigs.

This unit provides an amazing side reach of 26.4 ft. (8 m); lifting ring located at the end of the second section is a standard accessory enabling you to lift loads of 550 lbs (250 kg) in any position, regardless of the chosen vehicle. The RH38 can be mounted on different chassis such as the Mercedes sprinter, Nissan NV 3500, Ford trucks and vans as long as the GVWR (gross vehicle weight rating) is greater than 9,500 lbs (4,309 kg).

***

The RH41 is a non-insulated telescoping ladder that extends to a working height of 41 ft (12.50 m). The RH41 has 3 ladder sections equipped with a lifting ring like most of our products and it grant you to lift up to 550 lbs (250 kg) in any position, regardless of the chosen vehicle.

With the RH41, you get the rugged reliability and durability that RH aerial ladders are known for, at the best price. Our unit will provide you with 30 ft. (9.25 m) of side reach. That is without mentioning all the advantages and add on available to ensure that RH aerial lift equipment meet your specific needs.

This unit can be mounted on different chassis as long as the GVWR (gross vehicle weight rating) is greater than 11,500 lbs (5,216 kg) like Ford F450 or E450, Hino and so many more. Feel free to contact them for valuable information.

***

The RH44 is a non-insulated telescoping ladder with a working height of 44 ft. (13.41 m) and an amazing side reach of 32 ft. (9.90 m). This is a three sections ladder for extra effectiveness. The lifting ring is located at the end of the second section as a standard accessory and can lift up to 550 lbs (250 kg) in any position, regardless of carrier vehicle.

This unit can be mounted on different chassis as long as the GVWR (gross vehicle weight rating) is greater than 17,500 lbs (7,938 kg) like Ford F550 or E550, Hino, Freightliner and so many more

No need to say that RH has many other benefits and options available to ensure that they meet your exact needs. Key in hand option is available. Contact RH to see what they can do for your preferred chassis and configuration.

***

The RH47 is a non-insulated telescoping ladder with a working height of 47 ft. (14.33 m), comprising three ladder sections for extra efficiency and a great side reach of 36 ft. (11.07 m). This unit has the asset of being a 3 section ladder including a lifting ring, as does most of our equipment. Ideal for work requiring a longer reach (e.g., utility poles offset far from the road)

This unit can be installed on different chassis as long as the GVWR (gross vehicle weight rating) is greater than 17,500 lbs (7,938 kg) like Ford F550 or E550, International, Freightliner and so many more.

The use of STRENX steel comes in handy; you get the ruggedness and quality RH Aerial Lift Equipment is known for and greater pay load normally associated with bigger rigs.  Feel free to contact them for more information.

***

Specialized products

Towable aerial ladder - insulated - 33 to 45 feet

If you are looking for the overall combination gathering the versatility of a towable boom and the safety of an insulated unit, you will be glad to discover the RH towable insulated aerial lift (RHR Serie). In association with Cisolift, RH equipment developed this new product that answers a specific need.

It can be towed with pretty much any vehicle equipped with an itch. The lifting ring is located at the end of the second section; it is a standard accessory and can lift loads of 550 lbs (250 kg) in any position.

The control panel is conceived for Nordic weather all the way down to -40˚ C/F. It grants a visual support to manage the increased security measures for the end users. The aerodynamic design of the cargo space combine 2 ends opening storage and a mechanic, electronic component trunk.

Touch Screen : From the main control panel and conceived for Nordic weather remains functional all the way down to -40˚ C/F, the touch pad of the control panel grant a visual support to manage the increased security measures for the end users.

***

Aerial maintenance / rescue unit BR-400 or Prinoth 50 feet

The BR is actually the name of the vehicle you install your units on. The entire line of RH products can be installed. From the RH35 to the RH50D, sky is the limit. With its working height of 50 ft. (15, 25 m) and its side reach of 39 ft. (11,90 m) it is commonly used to ski patrol assistance, chairlifts and snow maker maintenance, light post maintenance, pruning and so many more.

The tiltable base allows you to level your aerial lift as if your hillside grooming machine were on a horizontal surface. You can thus work on a 45˚ slope. Equipped with 2 stabilizers, the unit guarantee a safe working environment.

The lifting ring is located at the end of the second section; it is a standard accessory and can lift loads of 550 lbs (250 kg) in any position, regardless of carrier vehicle. And that’s not to mention the many other benefits and options available to ensure that RH aerial lift equipment meets your peculiar needs. Feel free to contact them for more information.

***

Auto-levelling platform - stairs -  34 feet

The RHS34 is a non-insulated telescoping platform that turns into steps with a working height of 34 ft. (10.36 m) and 26, 7 ft. (8,14 m) of side reach. The “S” in RHS34 is in referral in step because it can be used as a perfect flat platform and as it deploys itself becomes a 60-degree stairs case.

This unit reflects the firm’s commitment to R&D and was developed in conjunction with the SOPFEU of Quebec, the RHS34 is tailored to the specific requirements of airport and aircraft maintenance and many more without compromising safety. This unit can be mounted on many smaller chassis.

The use of STRENX steel comes in handy; you get the ruggedness and quality RH Aerial Lift Equipment is known for and its light weight allows the vehicle to move faster and be more efficient. Key in hand option is available. Please contact them to see what they can do for your chosen vehicle and equipment.

***

Maintenance platform - 16 feet

The RHP14 is a non-insulated telescoping platform with a working height of 14 ft. (4.27 m) and 16.5 ft. (5 m) of side reach. The “P” in RHP14 is in referral in Platform. Developed in conjunction with the Ministry of Transport of Quebec, the product RHP14 is tailored to the specific requirements of roadside maintenance and signage.

This unit stands out for the RH crowd! It has a unique proportional & instinctive hydraulic control, auto-levelling controlled floor space and is installed at the back of the chosen vehicle. This unit can be mounted on vehicles wide enough to great the platform.

The use of STRENX steel comes in handy; you get the durability and quality of an RH Aerial Lift Equipment and a greater pay load normally associated with bigger rigs. Key in hand option is available to you. Please feel free to contact them to see what they can offer for your chosen vehicle and configuration.

***

Lineman and lashing truck - 44 feet

The RH44T is a non-insulated telescoping ladder with a working height of 44 ft. (13.41 m) and an amazing side reach of 32 ft. (9.90 m). This reinforced three sections ladder is built to side pull, assist line man for lashing and so many more.

The lifting ring is located at the end of the second section as a standard accessory and can lift up to 550 lbs (250 kg) in any position, regardless of carrier vehicle. Comes with a wider aluminium bucket for more working space and a -30˚ base for ground access.

This unit can be mounted on different chassis as long as the GVWR (gross vehicle weight rating) is greater than 17,500 lbs (7,938 kg) like Ford F550 or E550, Hino, Freightliner and so many more. Key in head option is available. Contact them to see what they can do for your preferred chassis and configuration.

***

Firetrucks RH20M and RH20MFF

In their ongoing quest to offer new solutions for aerial work using a vehicle, the South Korean market has offered RH new challenges in the fire truck industry. RH Equipment is extremely proud that it's going further and higher with the all-new RH20MFF.

This new product meets the growing need for versatility in the fire fighting industry and especially for integration on a truck that is much lighter and more compact than industry standards.

In this range of aerial lift, you can count on the following 2 models:

• RH20M designed for rescue mode
• RH20MFF with fire fighter/ water distribution options

Roll off

The model provides the flexibility that municipality needs, simply roll-off the ladder to switch for whatever roll off needed in only 5 minutes!

***

Accessories and options

Visit RH website to see pictures and to find out about the options and accessories that can advantageously complement your RH equipment :

• Buckets
• Platform and rails
• SIgn holder
• JIB lifting assist
• Toolbox
• Arrow sliding
• Battery tray
• Bucket cover
• Flippable walkway
• Windshield visor
• Cone suport (Nissan)
• Bumper extension and hitch (Nissan)
• Bucket tent
• Ground access -30 degrees
• Goose neck
